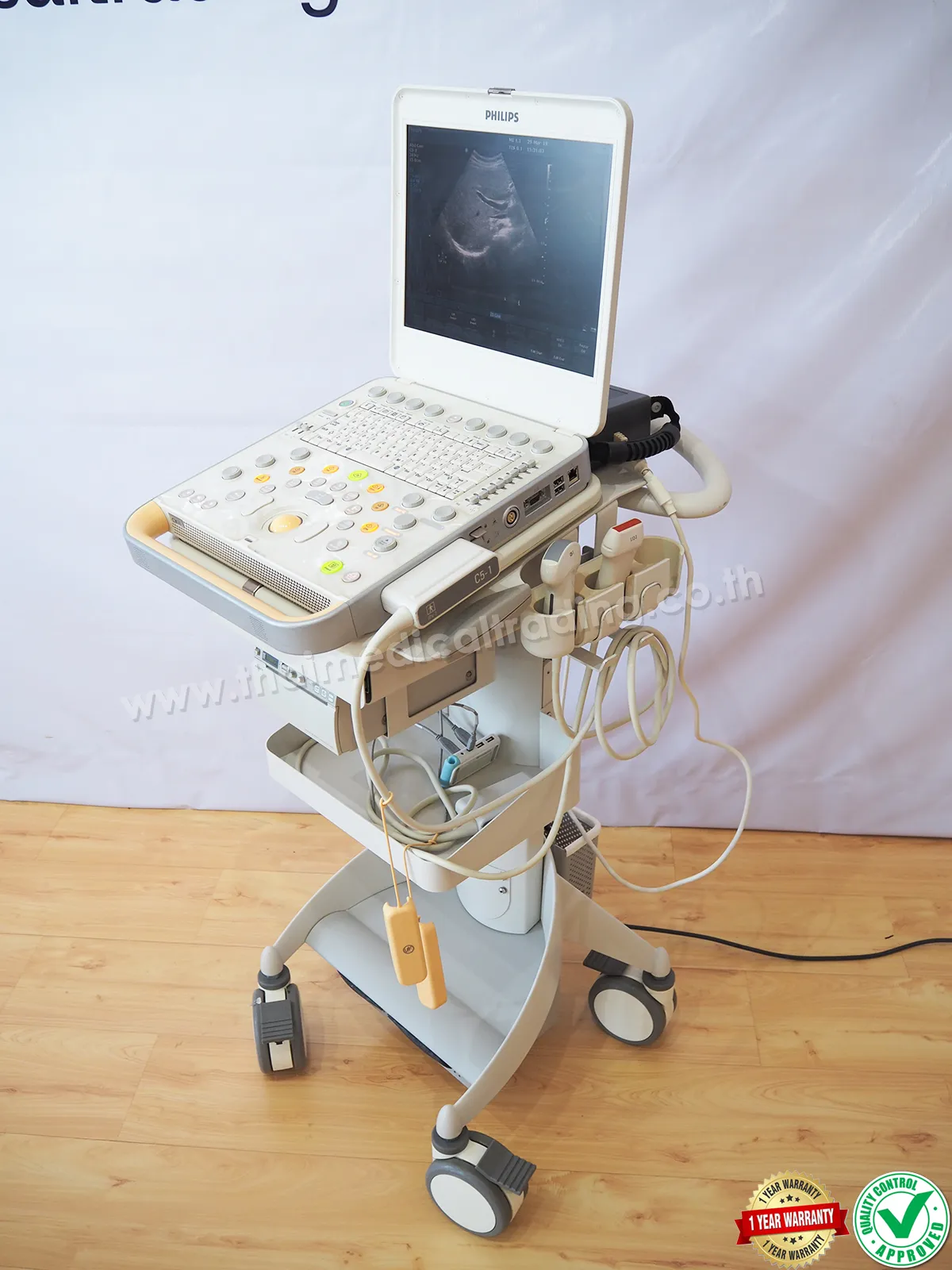

The Philips CX50 is a premium portable ultrasound with support for both PureWave single crystal and xMatrix transducers. The CX50 is a shared service ultrasound machine equally capable in radiology and OB/GYN as in cardiovascular applications. The compact size means it fits well in surgical, emergency and point of care situations where room is tight and mobility important.

• Wireless & wired DICOM for connectivity in any environment.
• SmartExam reduced exam time by up to 50%.
• Combines the broadband capabilities of a digital beamformer with the broadband signals produced by PureWave transducers.
• Advanced XRES adaptive image processing.
• High-resolution monitor for excellent viewing in the most difficult portable environments.

Dimensions

• Height: 3.4 In (86 cm)
• Width: 16.25 In (413 cm)
• Depth: 14 In (356 cm)
• Weight: 16.2 lbs. (7.3 kg)

Power

• Voltage: 100-240V
• Frequency: 50/60 Hz
• Amperage: 2.65A MAX
• Heat dissipation: 700-1100 BTU/hour (fully loaded)
• Operation range: 10°C – 40°C operating in 15-95% relative humidity

General

• Next-generation all-digital compact broadband beamformer with pulse shaping capability
• Up to 504,576 digitally-processed channels
• Image presentation: Depth from 1 cm to 30 cm (transducer dependent)
• Up to 170 dB full time system dynamic range
